In this RadExpand 5 Plus electric folding bike review, we take a close look at one of the most capable folding electric bikes you can buy for around $1,899. Most folding e-bikes stick to smooth pavement and skip anything resembling real off-road capability. Rad Power Bikes built the RadExpand 5 Plus to break that mold entirely.
The folding e-bike category has historically meant compromise, especially once the pavement turns to gravel or dirt. The RadExpand 5 Plus goes a different direction. It pairs 20″x4″ fat tires with a genuine hydraulic suspension fork, a responsive torque sensor, and turn signals, all wrapped inside a frame that folds down for storage in tight spaces.
For around $1,899, you get a 750W rear hub motor with 64Nm of torque, a 48V, 720Wh Safe Shield battery good for up to 60 miles, hydraulic disc brakes, a 50mm hydraulic suspension fork, and a folding aluminum frame rated to carry up to 315 lbs.
Is it still the best folding e-bike for rough terrain in 2026? Let’s find out.
VERDICT The RadExpand 5 Plus is one of the most capable folding e-bikes you can buy at this price. Its torque-sensing motor, genuine suspension fork, fat tires, and turn signals punch well above what a typical folding e-bike usually delivers. The bike’s real-world weight and narrower rider height range are the two honest trade-offs worth thinking through before you buy.
At-a-Glance Rating Scorecard
Scores based on spec analysis, verified customer review data, and hands-on assessment against class competitors.
Build Quality & Frame ████████░░ 8.6/10
Motor & Torque Performance ████████░░ 8.5/10
Battery Life & Range ███████░░░ 7.9/10
Comfort & Ride Quality █████████░ 9.0/10
Safety Features █████████░ 9.0/10
Rider Ergonomics ███████░░░ 7.6/10
Smart Tech & Display ████████░░ 8.0/10
Value for Money ████████░░ 8.3/10
OVERALL SCORE: 8.4 / 10 ★★★★★★★★░☆
Who Is This Bike For?
✅ IDEAL FOR Riders who want a folding e-bike that can actually handle gravel, sand, or rough pavement, anyone who values a genuine suspension fork and torque sensor, and riders who want the safety and visibility benefits of built-in turn signals.
⚠️ NOT IDEAL FOR Riders who want the lightest possible folding e-bike, anyone outside the 4’10” to 5’10” rider height range, or riders who need a very high maximum rider weight allowance.
👉 [Check Current Price on Rad Power Bikes’ Official Website]

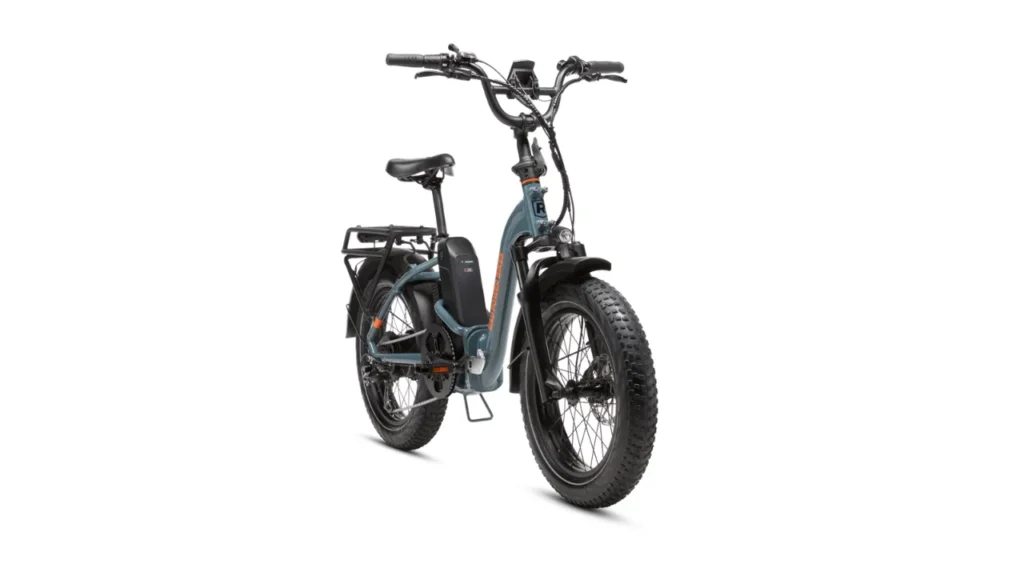

RadExpand 5 Plus
Full Technical Specifications
| Feature | Specification |
| Motor System | Rear Hub, 750W |
| Motor Torque | 64 Nm |
| Top Speed | 20 mph, Switchable Between Class 1 and Class 2 |
| Battery | 48V, 15Ah (720Wh), Safe Shield Advanced Battery, UL 2271 Certified |
| Real-World Range | 20 to 60 miles (Depending on terrain and assist level) |
| Sensor | Torque Sensor, 5 PAS Levels Plus Zero Assist |
| Brakes | Hydraulic Disc Brakes, Gemma GA-1000B, 180mm x 2.3mm Rotors |
| Suspension | Exsho STRONG-C Hydraulic Fork, 50mm Travel, Bolt-On Axle |
| Drivetrain | 7-Speed Shimano, 48T Crank, 14-32T Freewheel |
| Frame Material | Aluminum, Foldable |
| Payload Capacity | 315 lbs Total / 225 lbs Max Rider Weight |
| Bike Weight | 72.5 lbs (62.5 lbs with battery removed) |
| Rider Height Range | 4’10” to 5’10” |
| Standover Height | 16.5 inches |
| Security | Removable Battery with Universal Key Lock |
| Tires | CST BFT 20″x4.0″ Fat Tires, Puncture-Resistant Liner, Reflective Strip |
| Water Resistance | IPX6 Rated |
| Display | Rad Custom Color Display, USB-C Port |
| Throttle | Half-Twist Throttle |
| Lights | ~50 Lumen Front Headlight, Integrated Taillight with Brake Light, Rear Turn Signals |
| Rear Rack | Integrated, 59 lbs Rated |
| Fenders | Full Coverage Front and Rear |
| Charger | 48V, 2 Amp Smart Charger |
| Folded Dimensions | 29″H x 25″W x 41″L |
| Certification | UL 2849 (Full Electrical System), UL 2271 (Battery) |
| Price | Starting around $1,899 |
Pros & Cons
An honest assessment of what the RadExpand 5 Plus gets right, and where it makes trade-offs.
Pros
- Genuine Torque Sensor: Delivers power that scales naturally with your own pedaling effort, a step up from cadence-only systems.
- Real Hydraulic Suspension Fork: 50mm of travel smooths out rough streets, gravel, and light trails, unusual for a folding e-bike.
- Fat Tires with Real Grip: 20″x4″ CST tires handle sand, gravel, and loose surfaces with genuine confidence.
- Built-In Turn Signals: A rare safety feature at this price, letting drivers and pedestrians know your next move.
- Safe Shield Battery Technology: Thermal-resistant cell encapsulation adds a meaningful layer of fire safety.
- IPX6 Water Resistance: Rated to handle high-pressure water splashes, genuinely useful in unpredictable weather.
- Switchable Class 1 and 2 Modes: Adjust throttle access directly through the display depending on local regulations.
Cons
- Heavier Than Most Folders: At 72.5 lbs, this e-bike is noticeably heavier than lighter folding options on the market.
- Narrower Rider Height Range: Fits riders from 4’10” to 5’10” only, a tighter window than some competitors offer.
- Lower Max Rider Weight: The 225 lb max rider weight is more restrictive than the 315 lb total payload figure might suggest, so it’s worth comparing against dedicated picks on our list of the best electric bikes for heavy riders if that’s a priority.
- No Class 3 Option: Riders wanting a 28 mph top speed will need to look elsewhere, since this e-bike caps out at 20 mph.

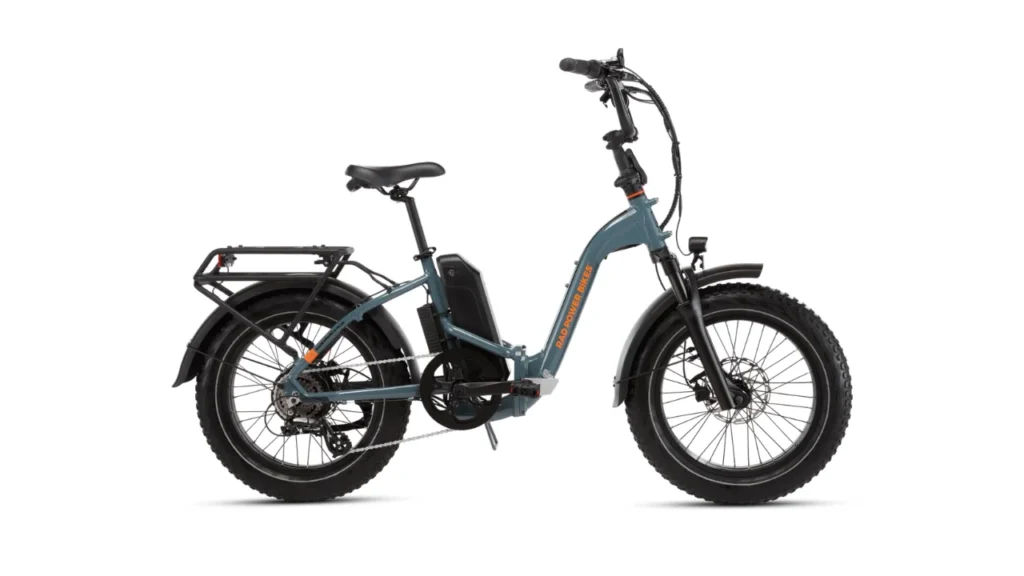

RadExpand 5 Plus Electric Bike Review
Design & Build Quality

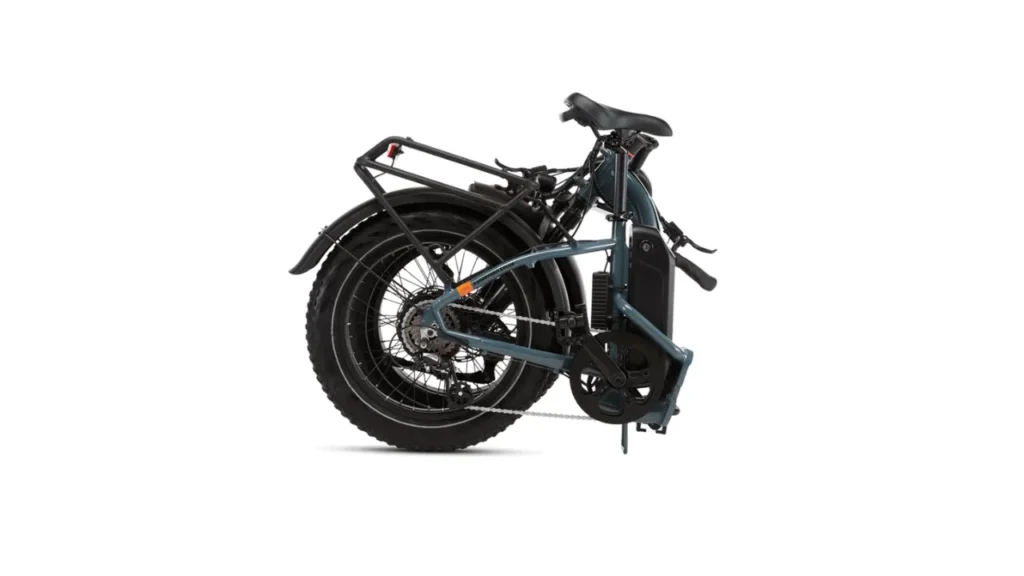

Frame Architecture
The RadExpand 5 Plus is built around an aluminum folding frame with a standover height of 16.5 inches, keeping mounting and dismounting straightforward for riders within its fit range. It comes with full coverage fenders, an integrated rear rack rated for 59 lbs, and retractable pedals that shrink the folded footprint even further. At $1,899, it also holds up well against other options on our list of the best electric bikes under $2,000, especially once you factor in the suspension fork and fat tires this bike includes.
What stands out here is how much capability Rad Power Bikes packed into a folding design. At 72.5 lbs, this e-bike isn’t the lightest folder on the market. But it’s worth understanding why so many electric bikes lean on fat tires in the first place, since the extra surface area is doing real work here for grip and comfort. That extra weight buys real hardware, though, including a suspension fork and fat tires that most lighter folding electric bikes skip entirely.
Cockpit and Controls

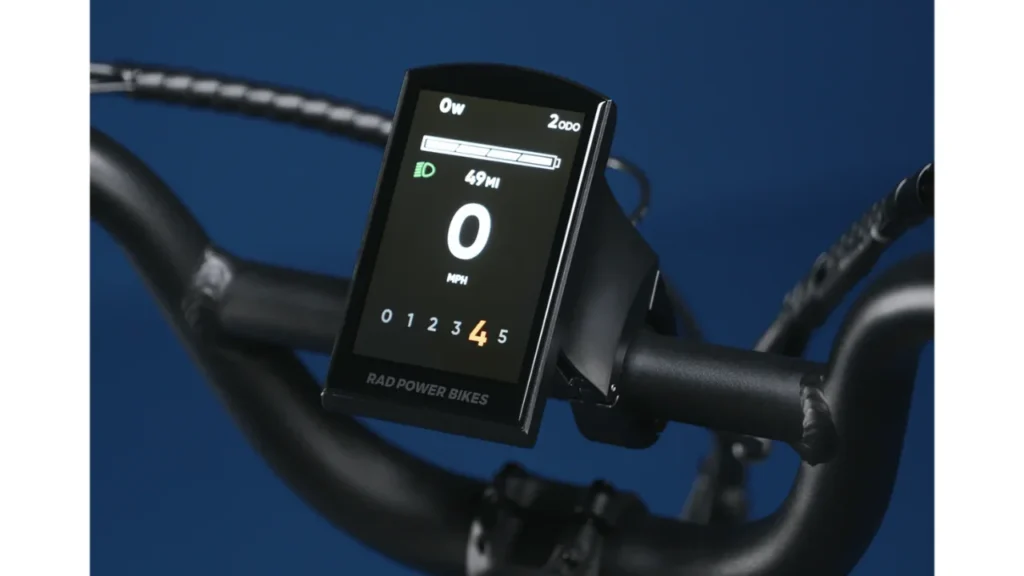

The custom color display covers the essentials clearly, showing speed, battery level, trip data, pedal assist level, and live motor wattage. A USB-C port lets riders charge a phone mid-ride, and the display also handles switching between Class 1 and Class 2 modes without needing an app.
Build Finish and Components
A 7-speed Shimano drivetrain, paired with a 48-tooth crank and a 14-32 tooth freewheel, gives the RadExpand 5 Plus a genuinely useful gearing range for hills and mixed terrain. The CST BFT 20″x4.0″ fat tires come with a puncture-resistant liner and reflective strip, adding both durability and visibility to the build, and this bike is a strong fit for anyone browsing the best fat tire electric bikes on the market right now.
Battery Life & Real-World Range Analysis
HONEST RANGE FIGURE
Rad Power Bikes lists a range of 20 to 60 miles for the RadExpand 5 Plus, and that wide spread reflects just how much terrain, rider weight, and assist level affect real-world results on an e-bike this capable off-road. Treat 60 miles as a best-case ceiling for flat pavement at low assist, and closer to 20 to 30 miles as the realistic expectation for sandy or hilly mixed riding.
The 48V, 720Wh Safe Shield battery is UL 2271 certified, and its thermal-resistant technology encapsulates each cell in a heat-absorbing resin designed to prevent an accident from escalating. The electric bike itself carries full UL 2849 certification, covering the entire electrical system rather than just the battery cell. The included 48V, 2 amp smart charger works across a wide voltage range, useful for riders who travel internationally.
PRO TIP: If you’re riding mostly on pavement, dropping tire pressure slightly for sand or gravel and bumping it back up for the road will noticeably improve your real-world range, since the fat tires add meaningful rolling resistance at lower pressures.
Motor Performance & On-Road Handling
Torque Sensor in Practice
The RadExpand 5 Plus runs a 750W rear hub motor delivering 64Nm of torque, more than enough to handle steep hills and loose terrain with confidence. Power comes through a genuine torque sensor rather than a basic cadence system.
If you’re unfamiliar with how pedal assist systems typically differ, a torque sensor scales assist to how hard you’re actually pedaling, which feels far more natural than the on-off surge common to cheaper cadence-only setups. Riders curious how a 750W setup like this translates into real-world speed can check out how fast a 750W electric bike can actually go for more context.
Suspension in Practice
The Exsho STRONG-C hydraulic fork delivers 50mm of travel, a genuine standout on a folding electric bike. It smooths out cracked pavement, roots, and washboard gravel in a way that most folders simply can’t match, since many skip suspension entirely to save weight. Combined with the fat tires, this e-bike handles rough terrain with a composure that belies its folding design.
Braking Performance
Hydraulic disc brakes from Gemma, paired with 180mm x 2.3mm rotors, provide confident, consistent stopping power. For riders comparing brake types across different electric bikes, it’s worth understanding how hydraulic brakes stack up against mechanical ones before making a purchase decision.
On-Road Handling
The RadExpand 5 Plus ships in Class 2 status, with a 20 mph top speed accessible via throttle or pedal assist. Riders can switch to Class 1 directly through the display, which limits throttle use to only work while pedaling. Riders who want a throttle-equipped commuter should check out the best Class 2 electric bikes on the market for comparison, while those who need to dial things back for local regulations might prefer browsing the best Class 1 electric bikes instead.
That torque and traction combination makes this electric bike genuinely capable of climbing steep hills without losing composure, even when the terrain gets loose or uneven.
Safety Features
The RadExpand 5 Plus’s safety package is genuinely one of the strongest in its category:
- Hydraulic disc brakes: Consistent, confident stopping power backed by 180mm x 2.3mm rotors.
- Built-in turn signals: A rare feature on a folding e-bike, letting drivers and pedestrians know your next move well before you make it.
- Auto-on lighting: The front headlight and rear brake light activate automatically, removing the guesswork of remembering to turn them on.
- UL 2849 and UL 2271 certification: Covers the full electrical system and battery cell, a meaningful safety differentiator in the folding e-bike category.
- IPX6 water resistance: Rated to withstand high-pressure water splashes, genuinely useful for unpredictable weather. It’s worth reading up on whether it’s safe to ride an electric bike in the rain before relying on any e-bike for consistently wet commutes, regardless of its rating.
- Bolt-on axle: Adds a layer of wheel security beyond a standard quick-release setup.
HONEST CONCERN: The RadExpand 5 Plus’s real-world weight, at 72.5 lbs, means it takes more effort to fold, lift, or maneuver at walking speed compared to lighter folding electric bikes. Given everything packed into this build, from suspension to turn signals, it also helps to understand why electric bikes cost what they do before comparing this price against more barebones alternatives. Riders who plan to use the integrated rear rack for cargo might also want to review general accessory recommendations built for delivery drivers, since many of the same load and security principles apply here.
Smart Security & Anti-Theft
The RadExpand 5 Plus doesn’t include app-based tracking or NFC unlocking, but the removable Safe Shield battery does come with a universal key lock, a simple deterrent against casual theft.
It’s worth noting that Rad Power Bikes is upfront that universal keys aren’t unique to a single battery and may work across multiple locks, including on other Rad electric bikes. That means this system offers a basic layer of protection rather than dedicated, high-security locking, and the company specifically recommends against leaving the battery attached and unattended in public.
Real-world security strategy: Since the RadExpand 5 Plus doesn’t include a native GPS tracker or app-based lock, pairing it with a quality U-lock is the sensible move for anyone parking in public for extended periods. Riders shopping around might also want to compare this bike against a suspension-equipped commuter like the Velotric Discover 3, which takes a different approach with app-based security instead of a physical key.
Head-to-Head Competitor Comparison
| Feature | RadExpand 5 Plus | Lectric XP4 Step-Thru | Heybike Ranger 3.0 Pro |
| Motor | 750W / 64 Nm Torque | 500W / 65 Nm Torque | 750W / 80 Nm Torque |
| Sensor Type | Torque Sensor | Cadence Sensor | Torque Sensor |
| Battery | 48V, 720Wh | 48V, 588Wh | 48V, 720Wh |
| Range | 20 to 60 miles | Up to 65 miles | Up to 90 miles |
| Brakes | Hydraulic Disc | Hydraulic Disc | 2.3mm Hydraulic Disc |
| Suspension | Hydraulic Fork, 50mm | Front Suspension Only | Full Suspension |
| Tires | 20″x4″ Fat Tires | Standard Tires | 20″x4″ Fat Tires |
| Top Speed | 20 mph (Class 1/2 Only) | 20 mph (Class 2) | 20 mph (Adj. to 28 mph) |
| Turn Signals | Yes | No | Yes |
| Payload | 315 lbs | 300 lbs | 440 lbs |
| Weight | 72.5 lbs | 64 lbs | 75 lbs |
| Price | $1,899 | $1,299 | $1,399 |
The RadExpand 5 Plus holds its own on suspension and tire capability, going toe-to-toe with the pricier Heybike Ranger 3.0 Pro on rough-terrain readiness while undercutting it slightly less on price. Its turn signals and IPX6 rating also give it a genuine safety edge over the Lectric XP4 Step-Thru.
The Lectric XP4 Step-Thru counters with a lighter frame and a lower price, but it skips fat tires and rear suspension entirely, putting it a tier below on rough-terrain comfort. The Heybike Ranger 3.0 Pro offers more torque, more range, and a higher top speed once unlocked, making it the stronger all-around pick if budget allows. For riders who specifically want visible safety features and genuine off-road grip in a folding package, the RadExpand 5 Plus still makes a strong case.
Final Thoughts
The RadExpand 5 Plus remains one of the most capable folding electric bikes you can buy for around $1,900 in 2026. Its torque-sensing motor, genuine suspension fork, fat tires, and built-in turn signals come together into a package that’s difficult to match for riders who want real off-road readiness in a folding frame.
The bike’s real-world weight and narrower rider height range are the two things worth thinking through before buying. Neither is likely to be a dealbreaker for most riders within the fit window, but they’re worth weighing against your own priorities around portability and body size. If your rides mix pavement, gravel, and the occasional sandy trail, the suspension and fat tires alone make this e-bike worth serious consideration.
For riders who want a folding electric bike that can genuinely handle rough terrain without sacrificing safety features, the RadExpand 5 Plus remains one of the easiest recommendations in its category right now.
